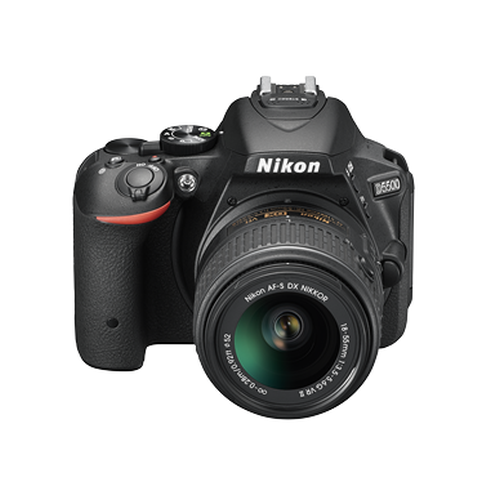

Single-lens reflex digital camera

Nikon F mount

Nikon DX format; focal length equivalent to approx. 1.5x that of lenses with FX format angle of view

DX

CMOS

23.5mm, x15.6mm

24.78million

Image sensor cleaning, Image Dust Off reference data (Capture NX-D software required)

24.2million

(L)6000, x4000, (M)4496, x3000, (S)2992, x2000

NEF (RAW): 12- or 14 bit, compressed, JPEG: JPEG-Baseline compliant with fine (approx. 1 : 4), normal (approx. 1 : 8), or basic (approx. 1 : 16) compression, NEF (RAW)+JPEG: Single photograph recorded in both NEF (RAW) and JPEG formats

Standard, Neutral, Vivid, Monochrome, Portrait, Landscape, Flat, ; selected Picture Control can be modified; storage for custom Picture Controls

SD, SDHC (UHS-I compliant), SDXC (UHS-I compliant)

Single

DCF 2.0, DPOF, Exif 2.3, PictBridge

Eye-level pentamirror single-lens reflex viewfinder

Approx. 95% horizontal and 95% vertical

Approx. 0.82x (50 mm f/1.4 lens at infinity, –1.0 m -1)

17 mm (–1.0 m -1; from center surface of viewfinder eyepiece lens)

-1.7 – +0.5m-1

Type B BriteView Clear Matte Mark VII screen

Quick-return type

No

Instant return, electronically controlled

Autofocus is available with AF-S and AF-I lenses. Autofocus is not available with other type G and D lenses, AF lenses (IX NIKKOR and lenses for the F3AF are not supported), and AI-P lenses. Non-CPU lenses can be used in mode M, but the camera exposure meter will not function. The electronic rangefinder can be used with lenses that have a maximum aperture of f/5.6 or faster.

Electronically-controlled vertical-travel focalplane shutter

1/4000–, 30s, in steps of 1/3 or 1/2 EV; Bulb; Time

X=, 1/200s, synchronizes with shutter at 1/200 s or slower

S (single frame), CL (continuous low speed), CH (continuous high speed), Q (quiet shutter-release), Self-timer, Interval timer shooting, , delayed remote; ML-L3, quick-response remote; ML-L3

Approx.5fps, L: Up to 3 fps H: Up to 5 fps (JPEG and 12-bit NEF/RAW) or 4 fps (14-bit NEF/RAW) Note: Frame rates assume continuous-servo AF, manual or shutter-priority auto exposure, a shutter speed of 1/250 s or faster, Release selected for Custom Setting a1 (AF-C priority selection), and other settings at default values.

2 s, 5 s, 10 s, 20 s; 1–9 exposures

TTL exposure metering using 2016-pixel RGB sensor

Matrix metering: 3D color matrix metering II (type G, E, and D lenses); color matrix metering II (other CPU lenses) Center-weighted metering: Weight of 75% given to 8-mm circle in center of frame Spot metering: Meters 3.5-mm circle (about 2.5% of frame) centered on selected focus point

(ISO 100, f/1.4 lens, 20°C/68°F) Matrix or center-weighted metering: 0–20 EV Spot metering: 2–20 EV

CPU

Auto modes (auto; auto, flash off); programmed auto with flexible program (P); shutter-priority auto (S); aperture-priority auto (A); manual (M); scene modes (portrait; landscape; child; sports; close up; night portrait; night landscape; party/indoor; beach/snow; sunset; dusk/dawn; pet portrait; candlelight; blossom; autumn colors; food); special effects modes (night vision; super vivid; pop; photo illustration; toy camera effect; miniature effect; selective color; silhouette; high key; low key)

Can be adjusted by –5 – +5EV, in steps of1/3 or 1/2EV, in P, S, A, M, SCENE, and night vision modes

3 frames, in steps of1/3 or 1/2EV

Luminosity locked at detected value with AE-L/AF-L button

ISO100–, 25600, in steps of1/3EV, Auto ISO sensitivity control available

Auto, Extra high, High, Normal, Low, Off

2 shots

Nikon Multi-CAM 4800DX autofocus sensor module with TTL phase detection, 39 focus points (including 9 cross-type sensor), and AF-assist illuminator (range approx. 0.5–3 m/ 1 ft 8 in.–9 ft 10 in.)

–1 – +19 EV (ISO 100, 20°C/68°F)

Single-servo AF (AF-S), Continuous-servo AF (AF-C), Auto AF-S/AF-C selection (AF-A), ; predictive focus tracking activated automatically according to subject status, Manual focus (MF):, Electronic rangefinder can be used

39, Can be selected from 39 or 11 focus points

Single-point AF, 9-, 21-, or 39- point dynamic-area AF, 3D-tracking, auto-area AF

Focus can be locked by pressing shutter-release button halfway (single-servo AF) or by pressing AE-L/AF-L button

auto, portrait, child, close up, night portrait, party/indoor, pet portrait, super vivid, pop, photo illustration, toy camera effect: Auto flash with auto pop-up P, S, A, M, food: Manual pop-up with button release

Approx. 12/39, 12/39 with manual flash (m/ft, ISO 100, 20°C/68°F)

TTL: i-TTL flash control using 2016-pixel RGB sensor is available with built-in flash; i-TTL balanced fill-flash for digital SLR is used with matrix and center-weighted metering, standard i-TTL flash for digital SLR with spot metering

Auto, auto with red-eye reduction, auto slow sync, auto slow sync with red-eye reduction, fill-flash, red-eye reduction, slow sync, slow sync with red-eye reduction, rear-curtain with slow sync, rear-curtain sync, off

-3 – +1 EV in steps of 1/3 or 1/2 EV, in P, S, A, M, and SCENE modes

Lights when built-in flash or optional flash unit is fully charged; blinks after flash is fired at full output

ISO 518 hot-shoe with sync and data contacts and safety lock

Advanced Wireless Lighting supported with SB-910, SB-900, SB-800, SB-700, or SB-500 as a master flash or SU-800 as commander; Flash Color Information Communication supported with all CLS-compatible flash units

AS-15 sync terminal adapter (available separately)

Auto, incandescent, fluorescent (7 types), direct sunlight, flash, cloudy, shade, preset manual, all except preset manual with fine-tuning.

3 shots in steps of 1

Yes

Autofocus (AF): Single-servo AF (AF-S); full-time-servo AF (AF-F) Manual focus (MF)

Face-priority AF, Wide-area AF, Normal-area AF, Subject-tracking AF

Contrast-detect AF anywhere in frame (camera selects focus point automatically when face-priority AF or subject-tracking AF is selected)

Available in auto and auto, flash off modes

TTL exposure metering using main image sensor

Matrix

1920 x 1080, 60p (progressive)/50p/30p/25p/24p, high/normal 1280 x 720, 60p/50p, high/normal 640 x 424, 30p/25p, high/normal Frame rates of 30p (actual frame rate 29.97 fps) and 60p (actual frame rate 59.94 fps) are available when NTSC is selected for video mode. 25p and 50p are available when PAL is selected for video mode. Actual frame rate when 24p is selected is 23.976 fps.

MOV

H.264/MPEG-4 Advanced Video Coding

Linear PCM

Built-in or external stereo microphone; sensitivity adjustable

100–25600

8.1cm (3.2–in.) diagonal

TFT vari-angle LCD touch screen with 170° viewing angle, approx. 100% frame coverage, brightness adjustment, and eye-sensor controlled on/off

Approx.1037k-dot, (720 x 480 x 3 = 1,036,800 dots)

Full-frame and thumbnail (4, 12, or 80 images or calendar) playback with playback zoom, movie playback, photo and/or movie slide shows, histogram display, highlights, photo information, location data display, auto image rotation, picture rating, and image comment (up to 36 characters)

Hi-Speed USB, ; connection to built-in USB port is recommended

Type C HDMI connector

NTSC, PAL

Stereo mini-pin jack (3.5 mm diameter); supports optional ME-1 stereo microphones

Wireless remote controllers: WR-1, WR-R10 (available separately) Remote cords: MC-DC2 (available separately) GPS units: GP-1/GP-1A (available separately)

IEEE 802.11b, IEEE 802.11g

IEEE 802.11b: DSSS/CCK IEEE 802.11g: OFDM

2412–2462 MHz (channels 1–11)

Approximately 30 m/98 ft (assumes no interference; range may vary with signal strength and presence or absence of obstacles)

54 Mbps Maximum logical data rates according to IEEE standard. Actual rates may differ.

Authentication: Open system, WPA2-PSK Encryption: AES

Supports WPS

Infrastructure

Arabic, Bengali, Bulgarian, Chinese (Simplified and Traditional), Czech, Danish, Dutch, English, Finnish, French, German, Greek, Hindi, Hungarian, Indonesian, Italian, Japanese, Korean, Marathi, Norwegian, Persian, Polish, Portuguese (Portugal and Brazil), Romanian, Russian, Serbian, Spanish, Swedish, Tamil, Telugu, Thai, Turkish, Ukrainian, Vietnamese

One EN-EL14a rechargeable Li-ion battery

EH-5b AC adapter; requires EP-5A power connector (available separately)

1/4–in. (ISO 1222)

Approx.124, x97, x70mm (4.9, x3.9, x2.8in.)

Approx.470g (1 lb 0.6 oz), with battery and memory card but without body cap; approx. 420 g/14.9 oz (camera body only)

Temperature: 0°C–40°C (+32°F–104°F) Humidity: 85% or less (no condensation)

Rubber Eyecup DK-25, Body Cap BF-1B, Rechargeable Li-ion Battery EN-EL14a (with terminal cover), Battery Charger MH-24 (plug adapter supplied in countries or regions where required; shape depends on country of sale), Strap AN-DC3, USB Cable UC-E23, Audio/video cable EG-CP16
